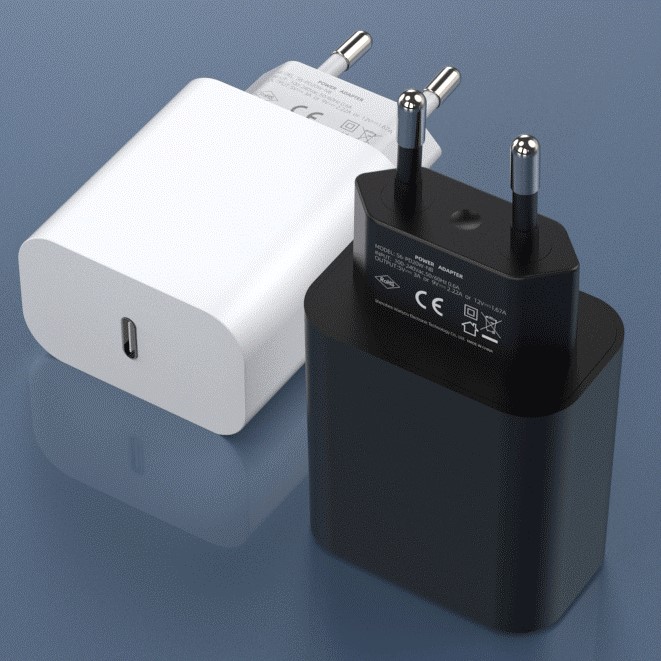

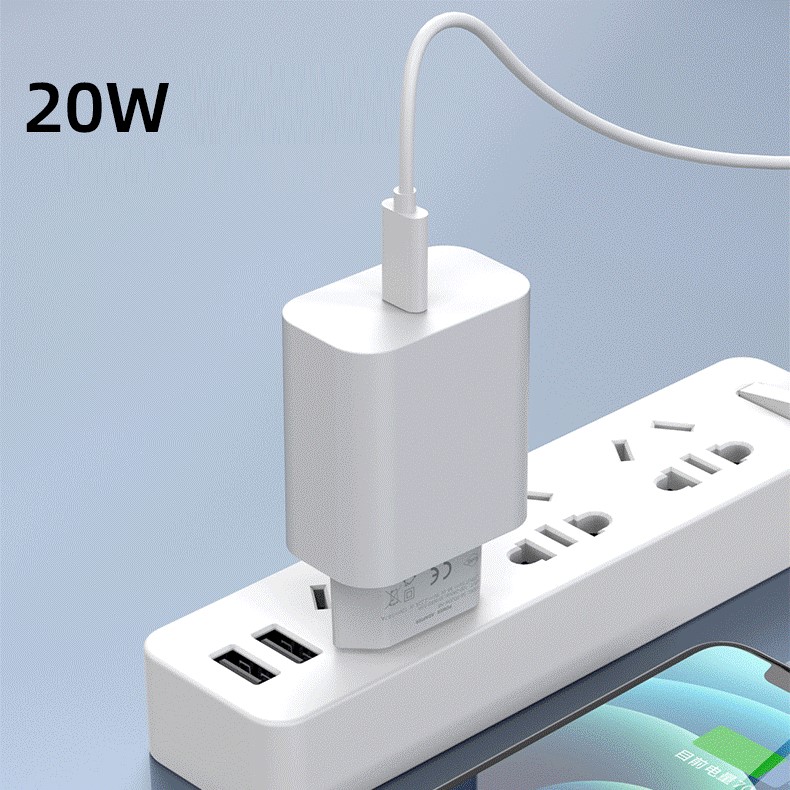

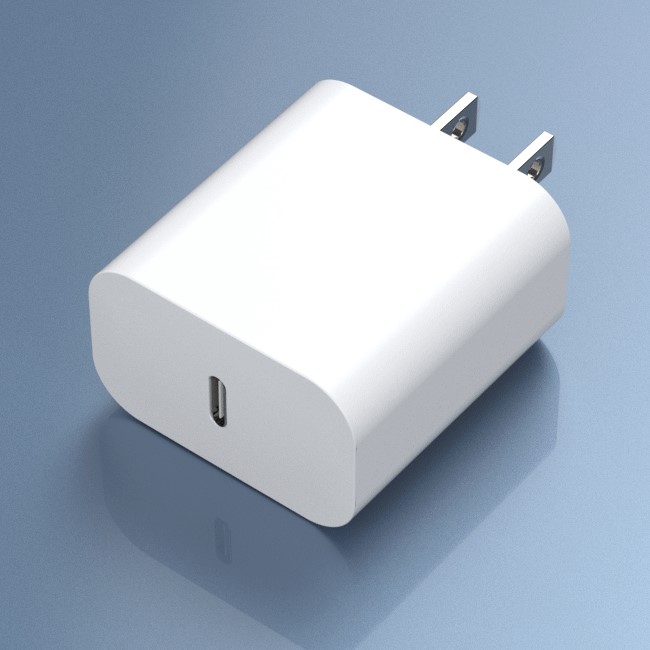

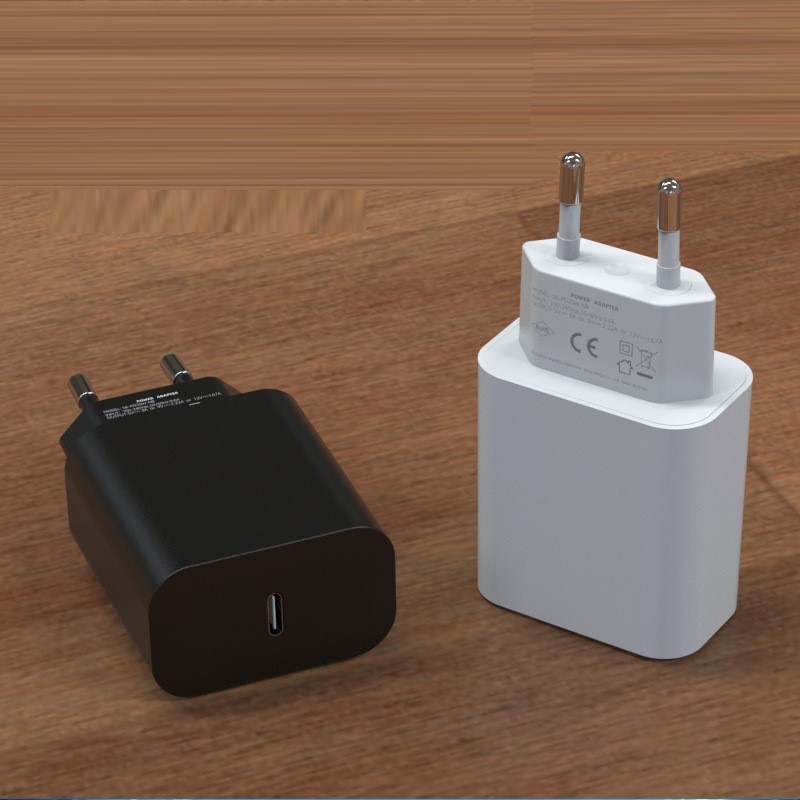

USB C Wall Charger, PD20W Type C Fast Charger Block Plug Adapter

FEATURES

Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B

Click here, you will get more details.

Inquire

Product Specification

Model	SDS6-PD3.0
Input Voltage	100-240VAC
Input Frequency	50/60Hz
Wattage	18W
Output Voltage	5V	9V	12V
Output Current	3A	2.22A	1.67A
Form Factor	Chargers
AC Inlet/Plug	CN/EU/US/AU/UK/KR/AR/JP/BR/ES/ZA

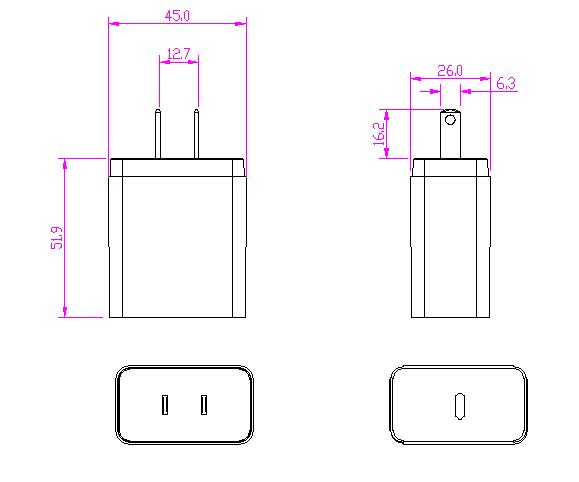

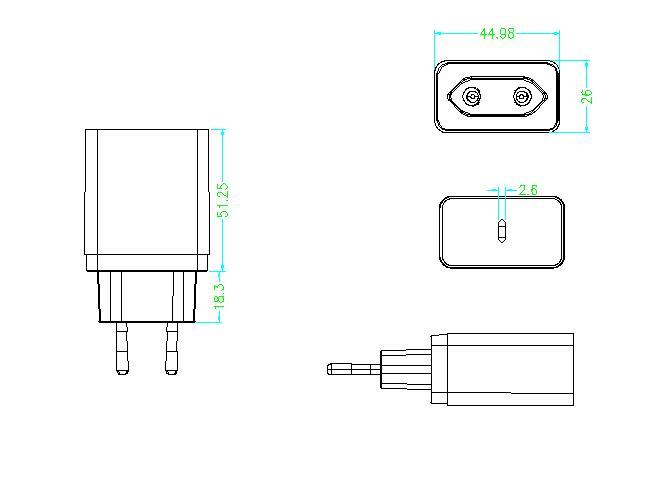

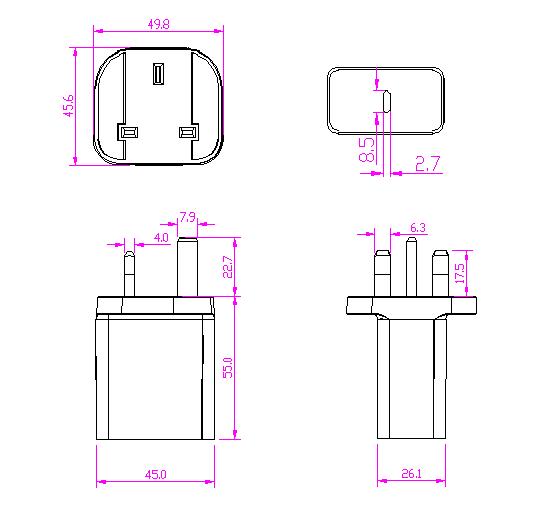

Mechanical Specification

Dimension LxWxH(mm)

51.9*45*26MM (CN\US\JP Version) 60*45*26MM (EU\BR\KR Version) 55*49.8*26MM (UK Version)

Production Applications

The main application of PD20W charger is Smat Mobile phone, like iphone / SAMSUNG.

Besides, other Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices which can be use USB type and request 5V2A, 5V3A also can be use.

application of PD20W.jpg

FAQ

Can I have sample even pre-production before I send you order?

Yes.We can send you a free sample for your approval first.

What’s your MOQ?

Usually,our MOQ is 100 pcs/model. Except for some special designed model.

What’s the leadtime for mass production?

Usually our leadtime for 5000 pcs is 7 days.Depend on your quantity and the model you order.

How should we pay if we order from you?

For small amount,you can pay by Paypal,Wechat,Alipay.When amount more than USD600,you can pay by bank.

What’s the warranty for your products?

We have 2 years(24 months) warranty.

Can I make OEM package?

Yes.We can make OEM package when the quantity over 1000 pcs of each model.
