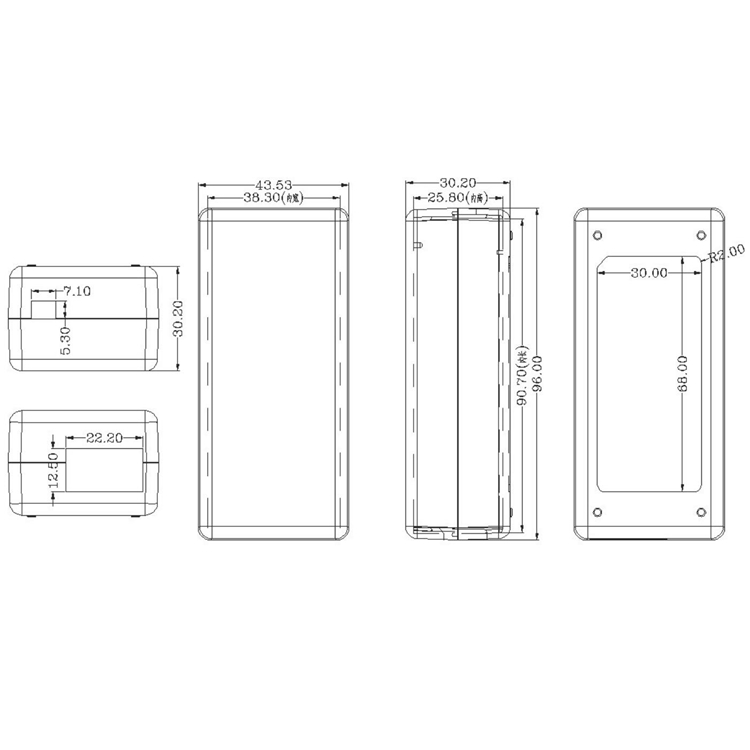

Dimension LxWxH(mm)
96.03*43.53*30.2MM
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
InquireModel | SD0502500 | SD0902500 | SD1202000 | SD2401000 | SD3600500 |
---|---|---|---|---|---|
Input Voltage | 100-240VAC | ||||
Input Frequency | 50/60Hz | ||||
Wattage | 12.5W | 22.5W | 24W | 24W | 18W |
Output Voltage | 5V | 9V | 12V | 24V | 36V |
Output Current | 2.5A | 2.5A | 2A | 1A | 0.5A |

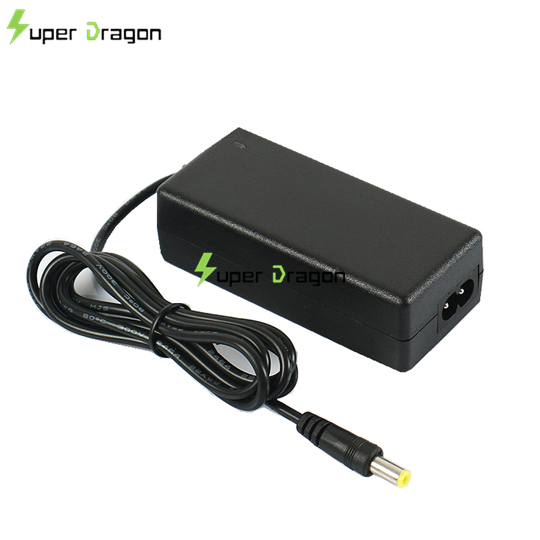

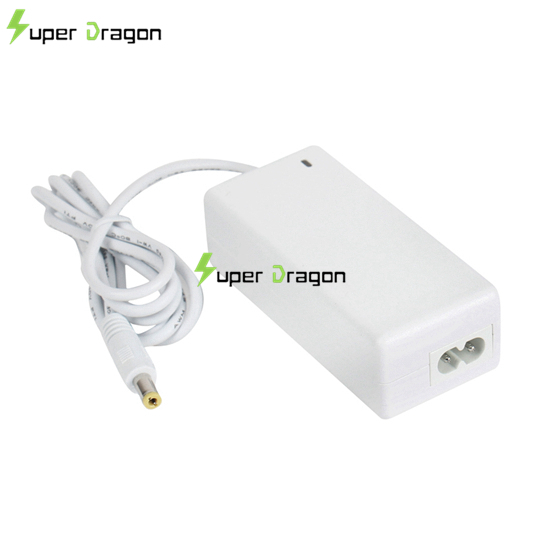

Form Factor | Desktop Power Adapters | ||||
AC Inlet/Plug | C8 |
96.03*43.53*30.2MM
Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
